RIM1501 Ice Maker Features:
High Ice Production
- Produces up to 58 lbs. of ice per day to keep up with entertaining and daily use.

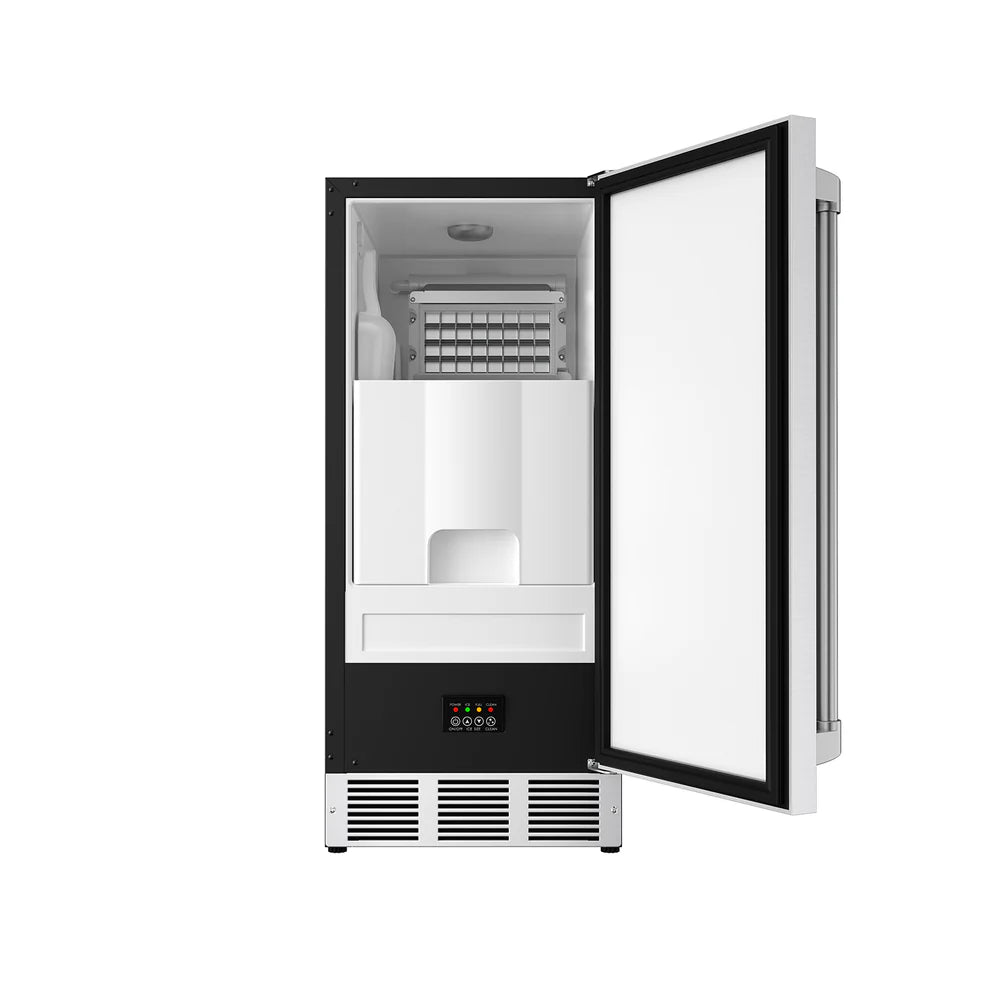

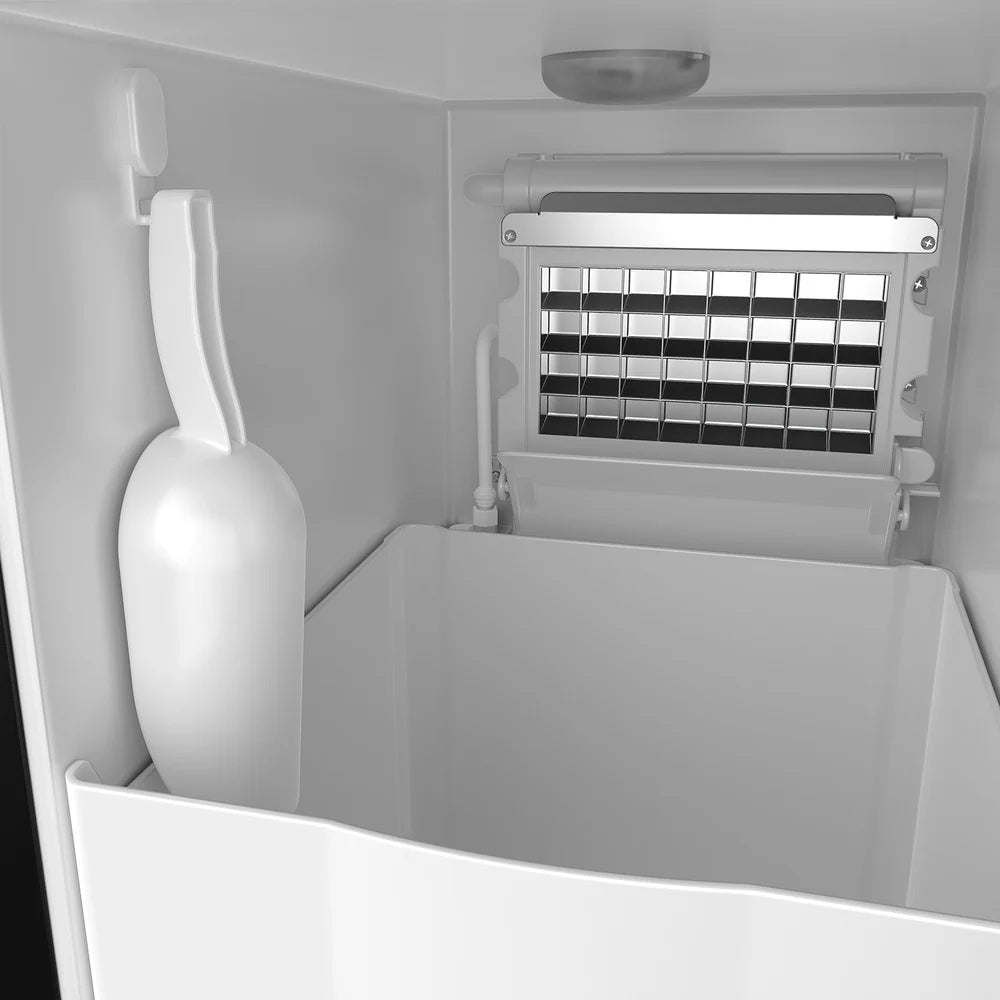

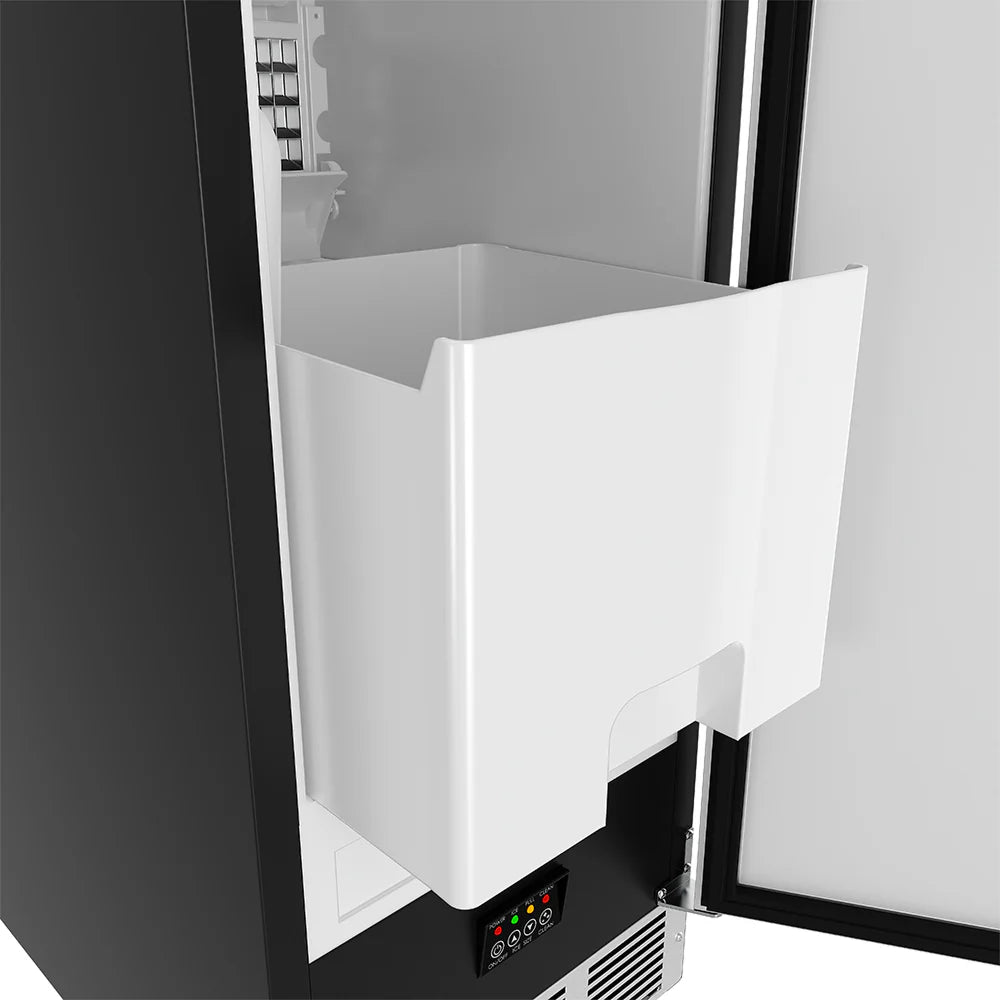

25 lb Ice Storage Capacity
- Stores up to 25 lbs. of ice so you always have a ready supply on hand.

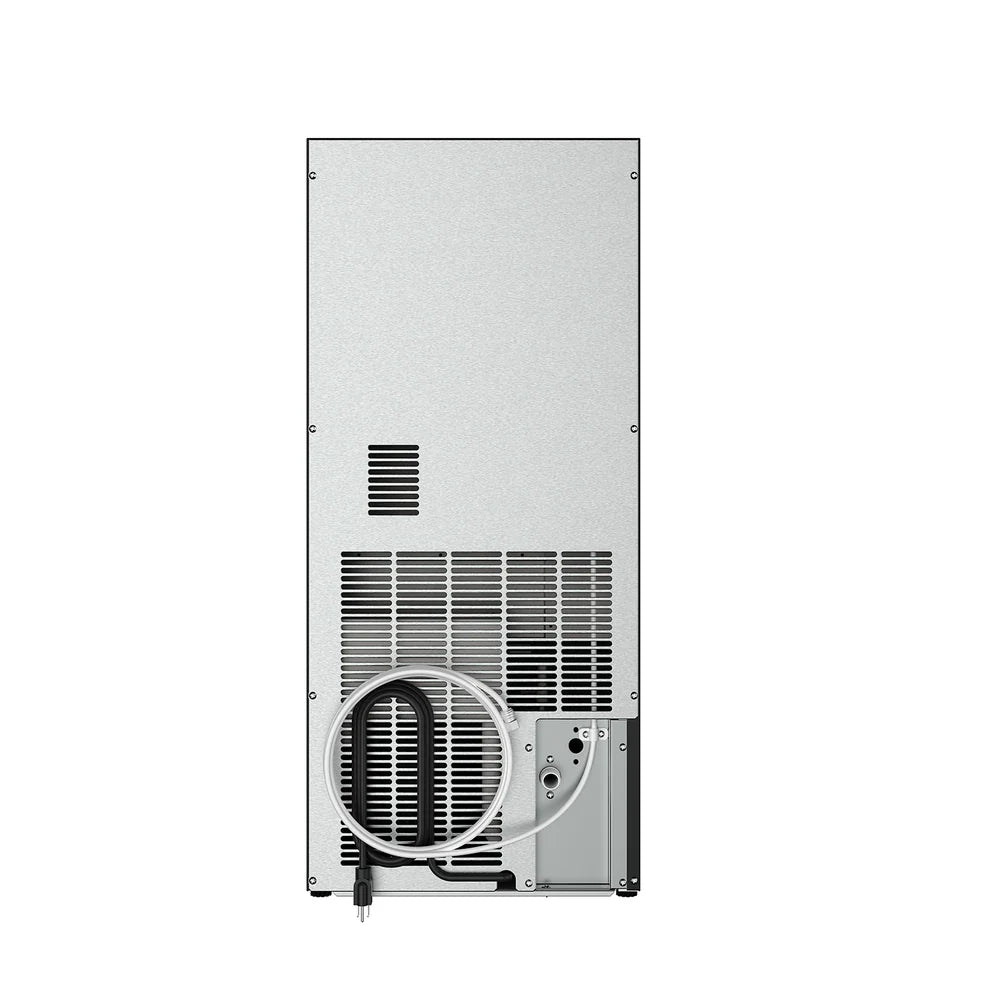

Built-In Pump
- Integrated pump allows for flexible installation options without the need for a gravity drain.
Freestanding or Built-In Installation
- Designed for versatile placement as a built-in or freestanding unit.
Self-Clean Function
- Automatic cleaning cycle and reminders help maintain hygiene with minimal effort.
Door Open Alarm
- Alerts you if the door is left open to prevent ice melting and energy waste.

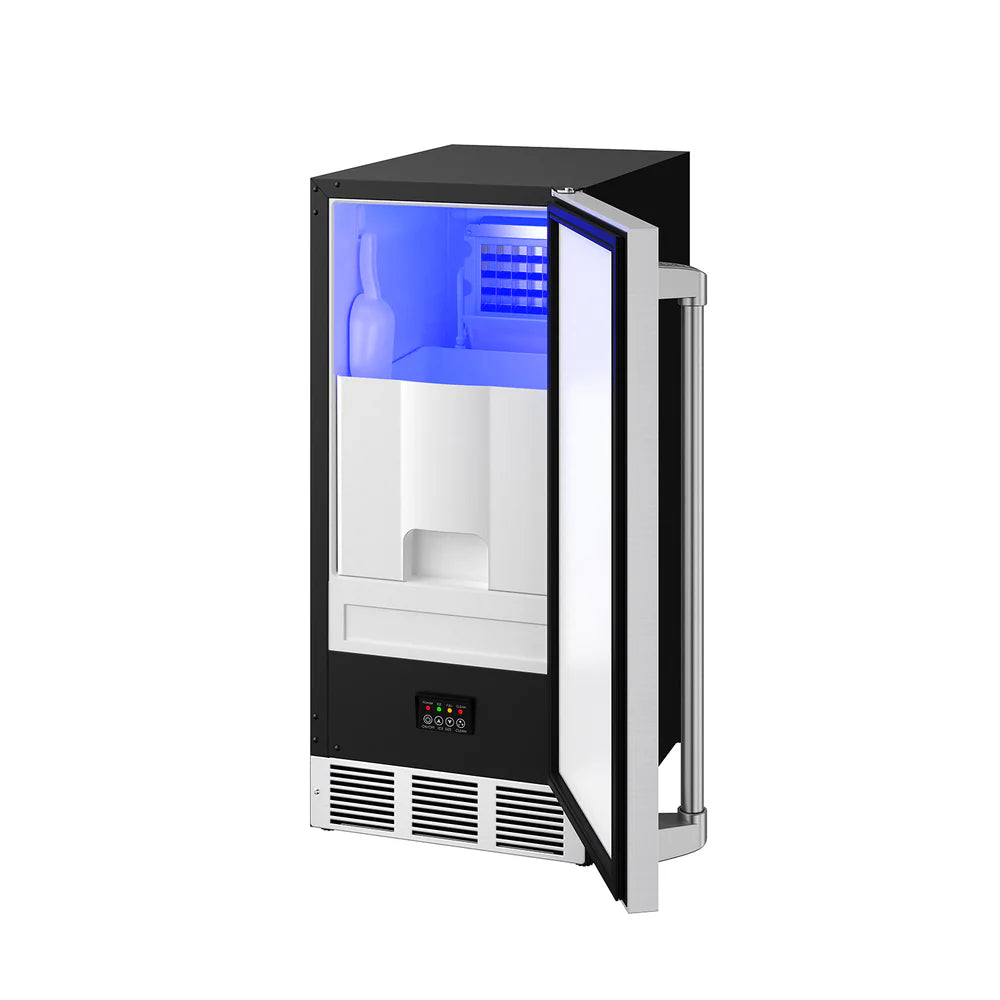

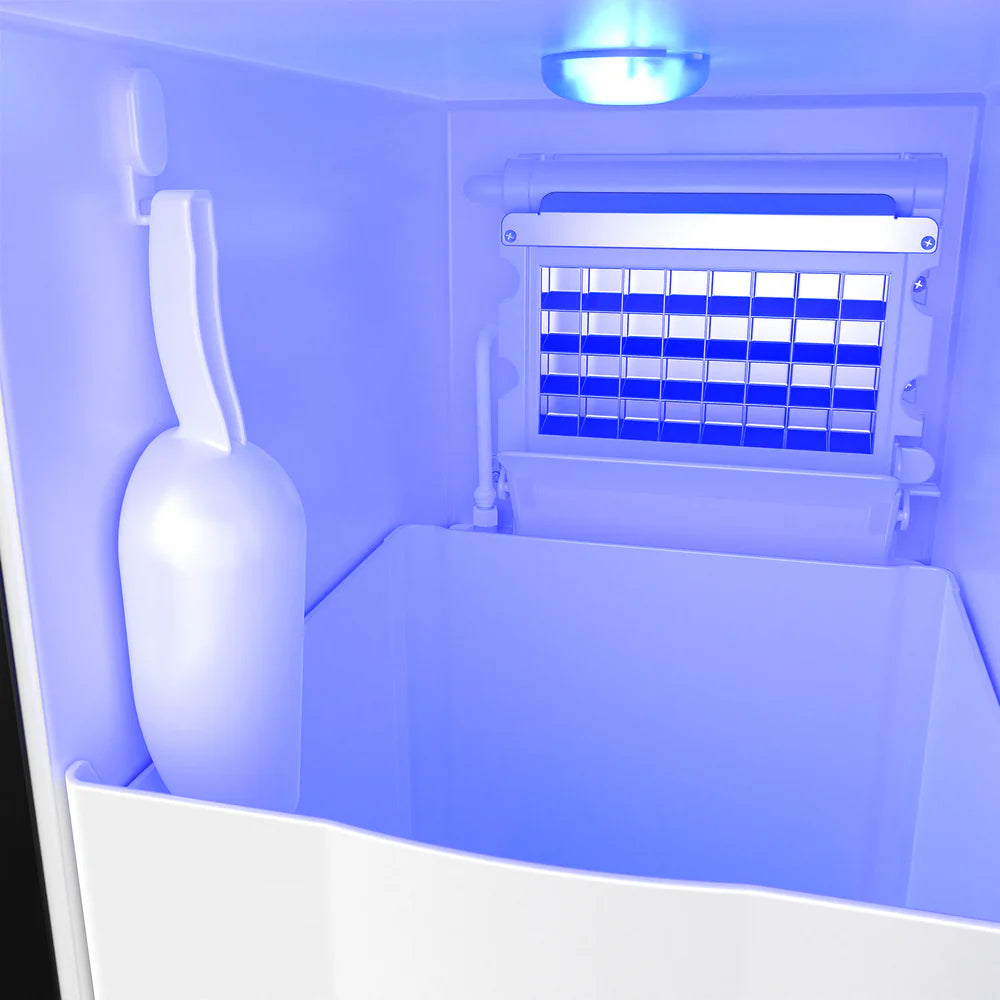

LED Interior Lighting
- Blue LED lighting improves visibility while adding a modern aesthetic.

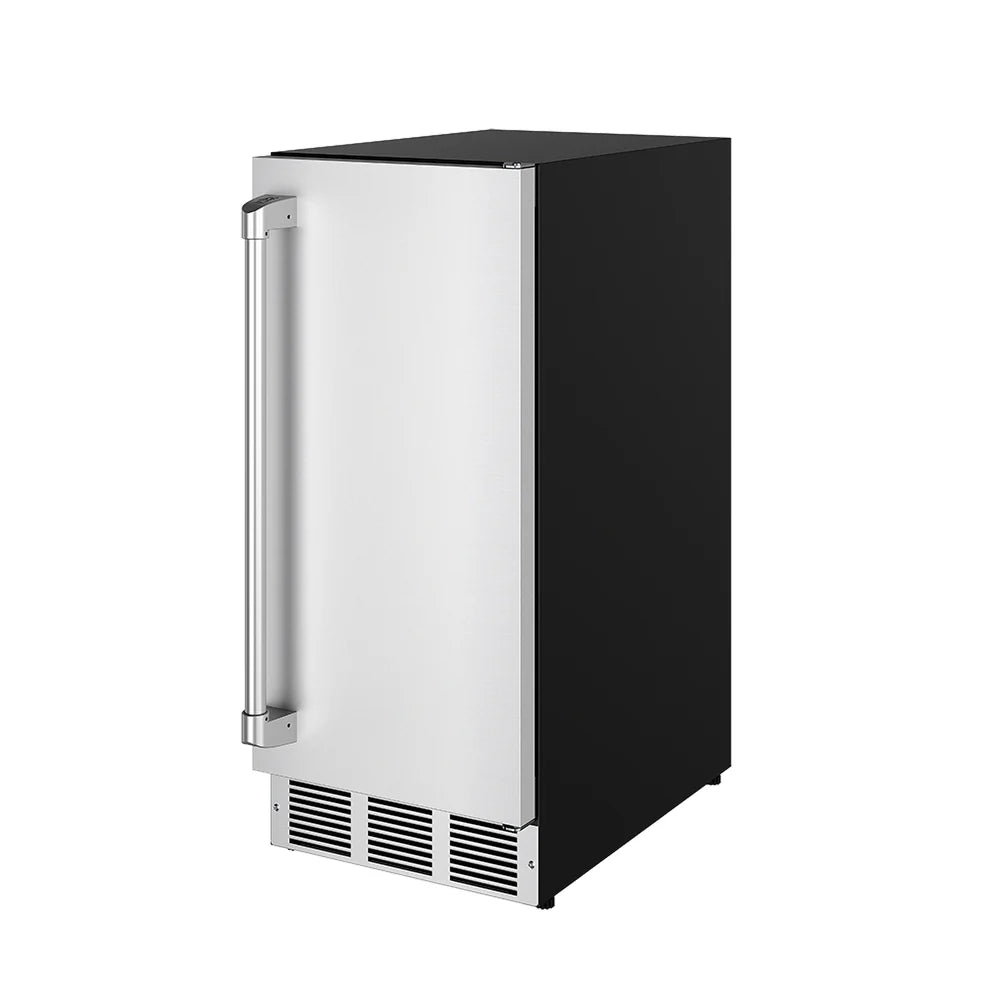

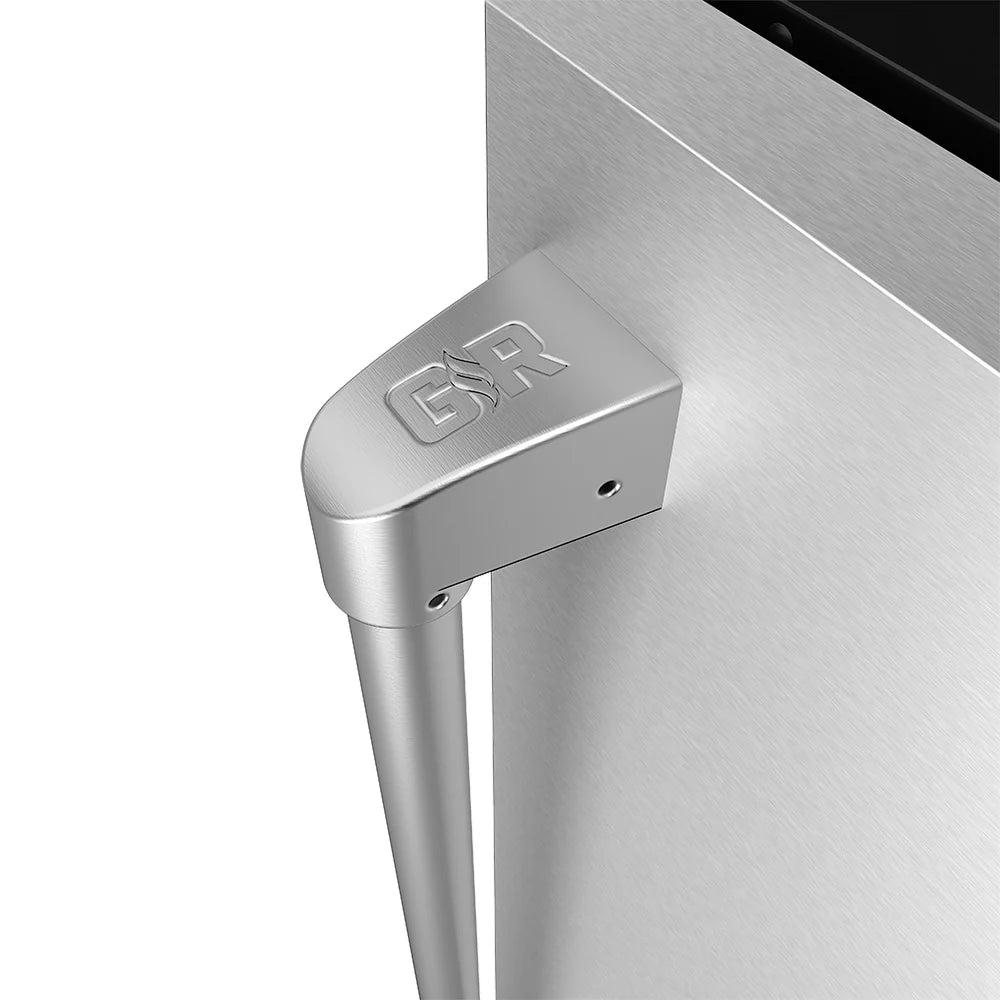

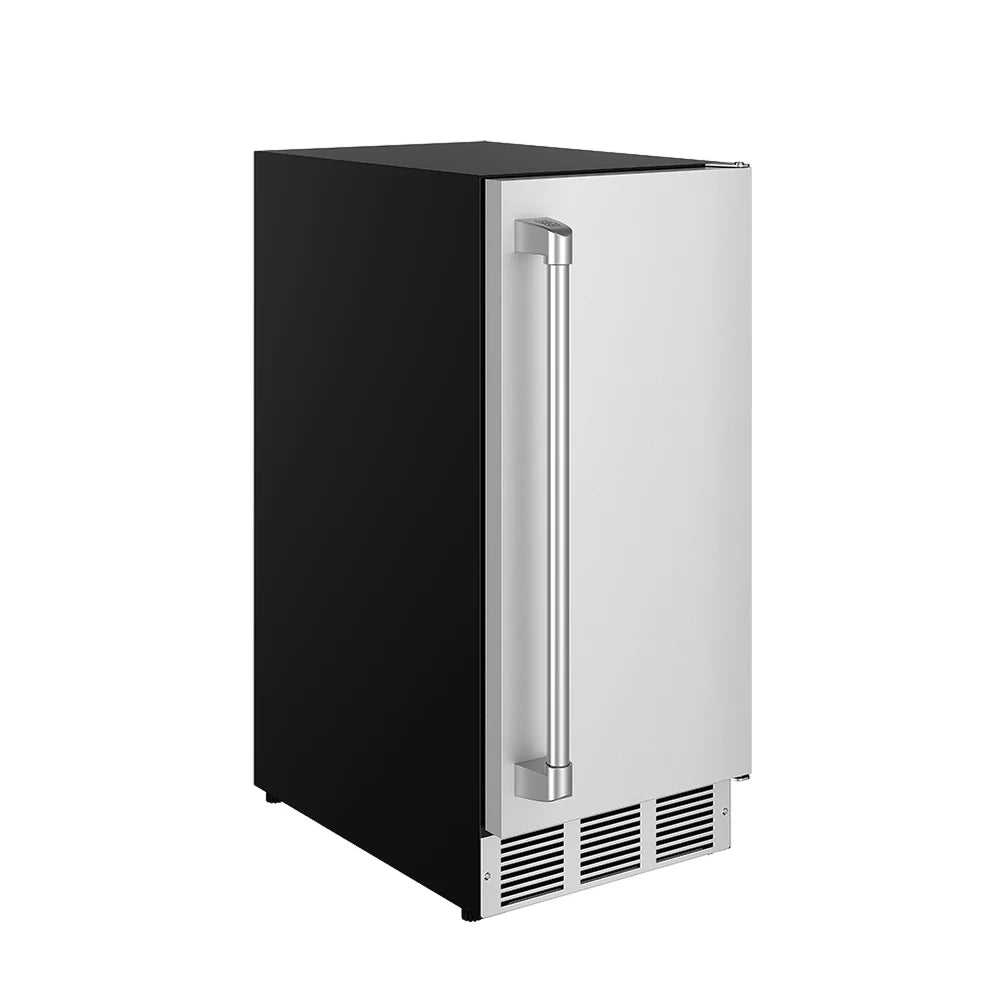

Reversible Stainless Steel Door
- Door can be installed to open from either side for flexible installation.

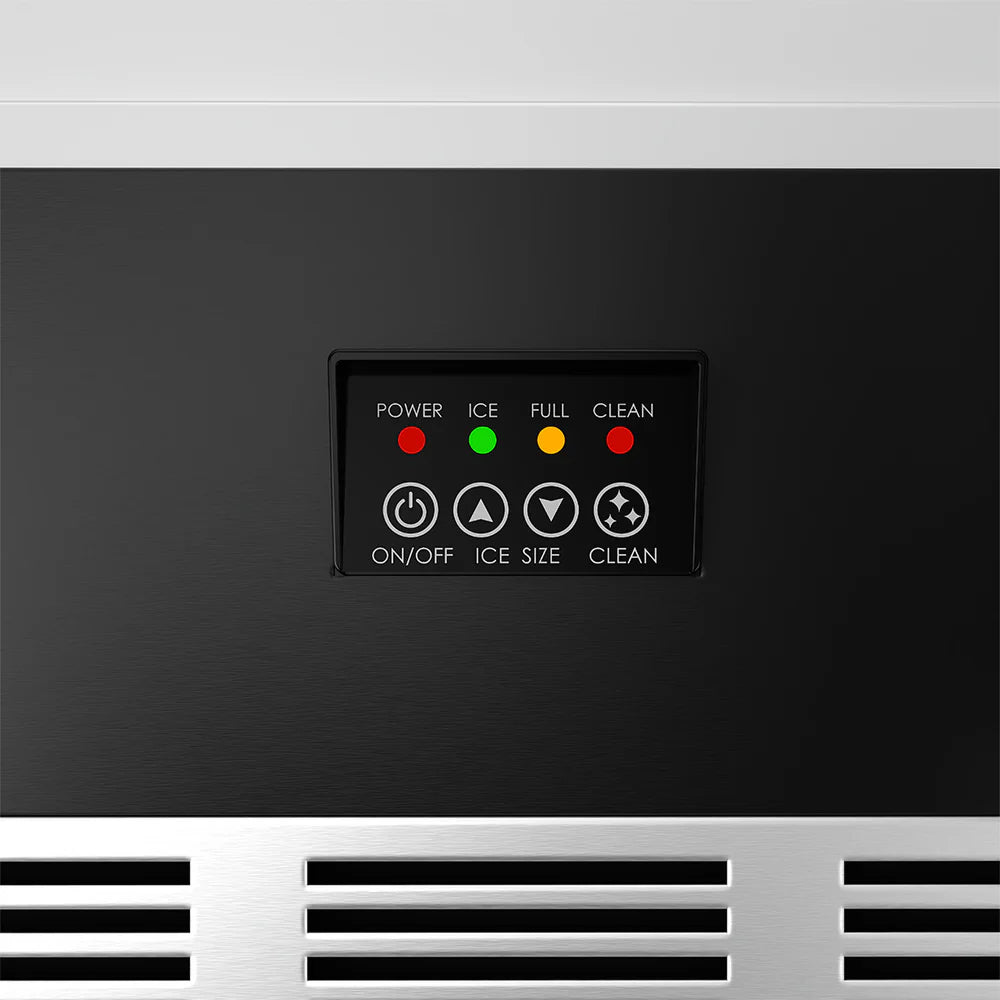

Ice Full Indicator
- Notifies you when the ice bin is full to prevent overflow.
Premium Cooling System
- High-efficiency compressor with R290 refrigerant ensures fast, reliable cooling.
About the RIM1501 Ice Maker:
Technical Details
|
| Electrical Supply |
115V / 60Hz |
| Circuit |
15A (Dedicated) |
| Running Load Amps |
2.5 Amps |
| Electrical Connection |
Cord Connected |
| Cord Plug Type |
NEMA 5-15P |
| Cord Length |
6.2 ft. |
| Refrigerant |
R290 |
| Water Supply |
1/4" OD Water Inlet Pipe |
| Ambient Temp Range |
50–100°F |
| Water Temp Range |
50–90°F |
| Water Pressure |
15–80 PSI |
Dimensions & Weights
|
| Product Dimensions (WxDxH) (in.) |
14-19/32" × 25-3/16" × 33-19/32" |
| Product Depth Excluding Handles (in.) |
22-19/32" |
| Product Depth Including Handles (in.) |
25-3/16" |
| Product Depth Excluding Door (in.) |
20-23/32" |
| Product Depth With Door Open 90° (in.) |
36-5/32" |
| Product Height to Top of Door Hinge (in.) |
33-19/32" |
| Product Height to Top of Ice Maker (in.) |
33-19/32" |
| Cutout Dimensions (WxDxH) (in.) |
15-3/32" × 33-13/16" (34-13/16" adjustable height) × 25-7/16" |
| Package Dimensions (WxDxH) (in.) |
17-13/16" × 27-5/8" × 38" |
| Net Weight (lbs.) |
79 |
| Gross Weight (lbs.) |
93 |
