Description
RSG30-RSG/RSG30LP-RSG Gas/Liquid Propane Range Features:

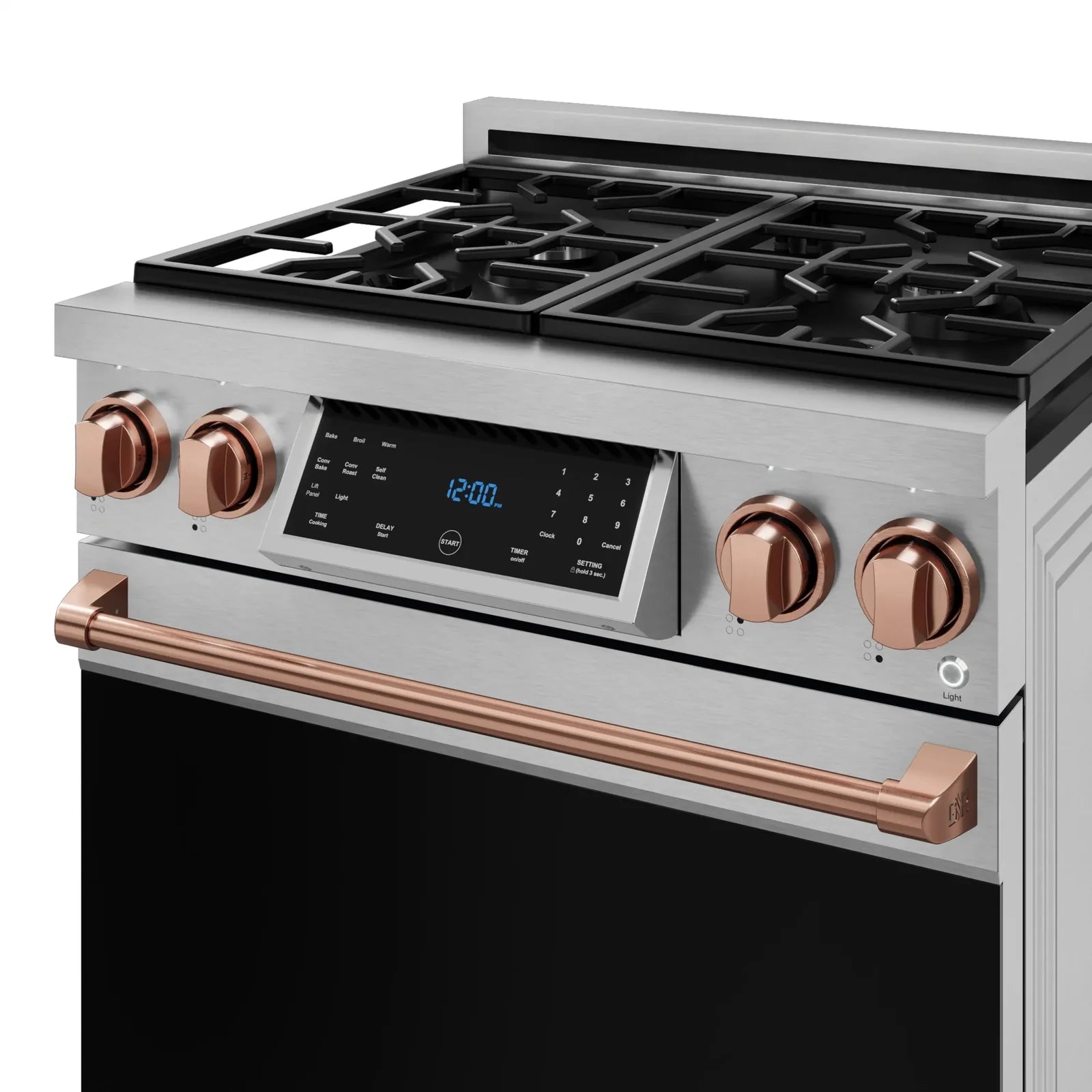

- Tilt Panel Touch Control - A tilt panel touch control is an adjustable control panel that tilts for optimal viewing and ease of use.

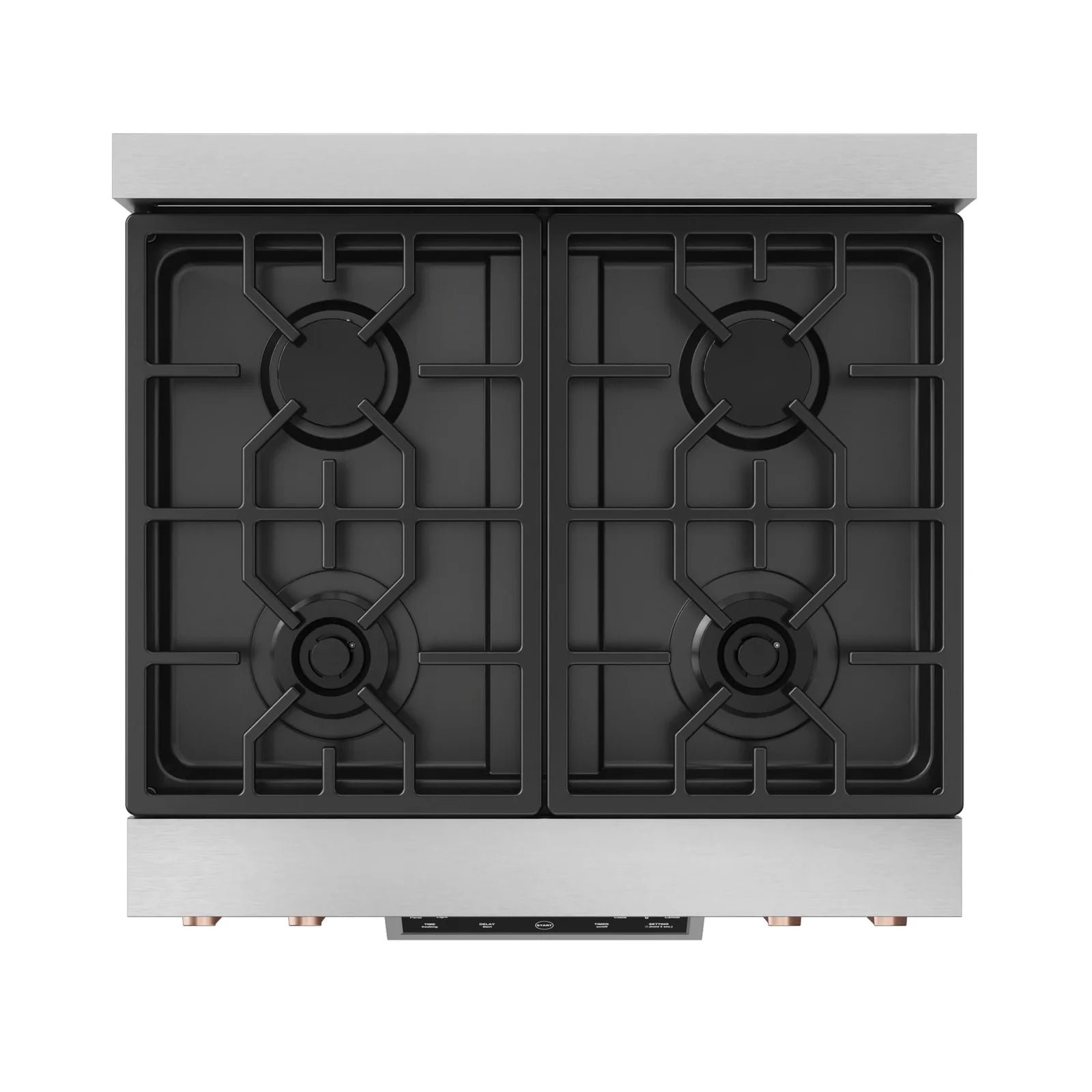

- Continuous Cooking Grate - The continuous grate design allows easy movement of pots and pans across the cooktop.
- High-Performance Dual Burners - Featuring a maximum output of 15,000 BTU for powerful cooking and a minimum of 650 BTU for precise, gentle simmering.
-
White Projector Light on Panel - The panel is illuminated by a white
projector light, ensuring easy visibility and a modern look. - Commercial Convection Fan - For even heat distribution within the oven.

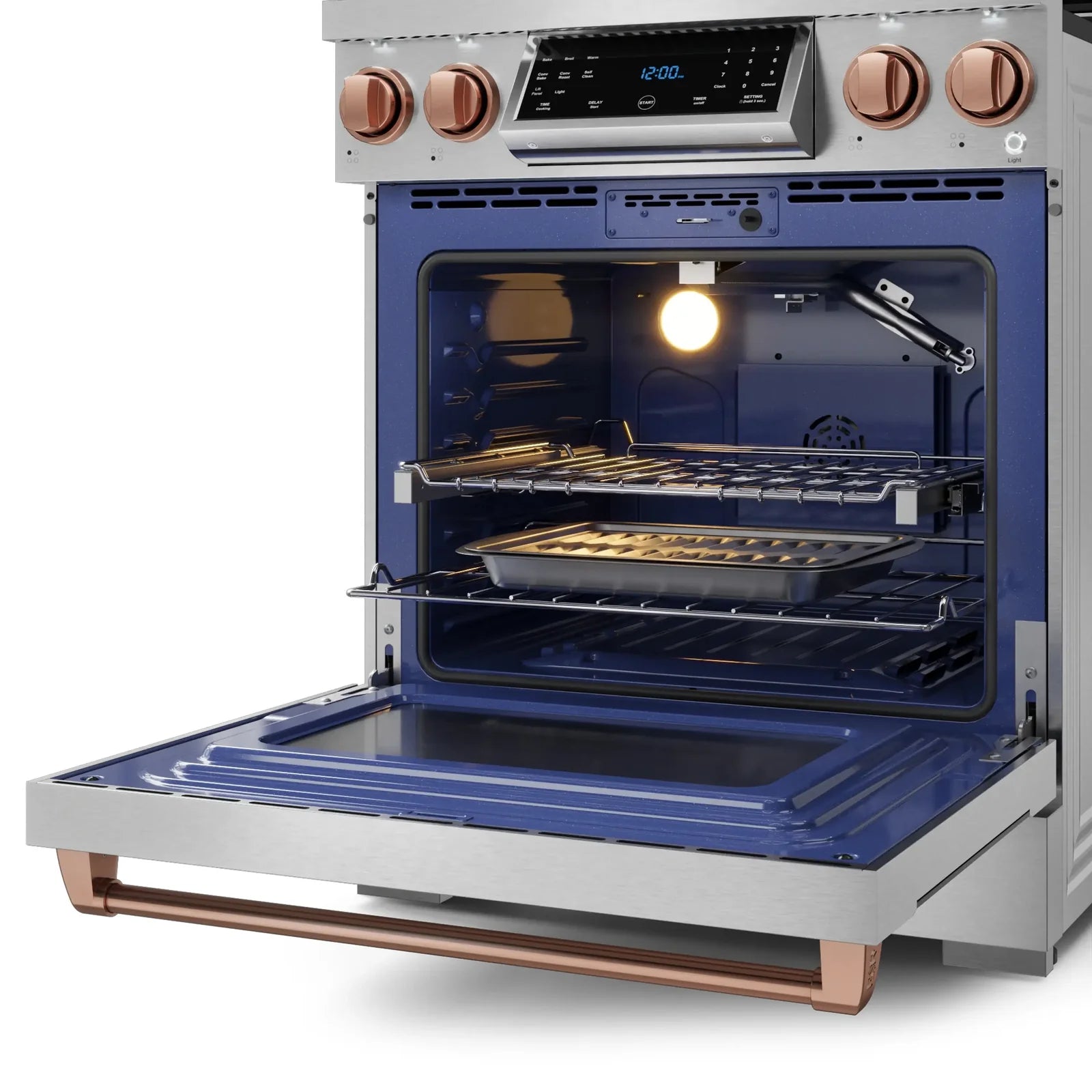

- Telescopic Racks - Telescopic racks use ball bearing rack guides for an effortless glide in and out of the oven and adjusts to fit different rack support levels.
- Powerful Broil Burner - The oven broiler features a 10,000 BTU tube for quick and efficient broiling.
- Powerful Bake Burner - The powerful bake burner provides 18,500 BTUs of consistent heat for even baking.
- Adjustable 3-Inch Feet with Decorative Leg Cover - The range includes 3-inch adjustable feet with a square decorative cover for the front legs.
-
Panoramic Viewing Window - Take a look inside the oven through the
panoramic viewing window for a full, clear view of your dishes as they
cook, allowing you to monitor progress without opening the door.
About the RSG30-RSG/RSG30LP-RSG Gas/Liquid Propane Range:
Designed for chefs who demand precision and power. With high-output burners, even heat distribution, and intuitive controls, this 30 Inch Gas/LP range in Stainless Steel/Rose Gold elevates your cooking experience. Built for durability and performance, it brings restaurant-grade quality to your home kitchen, making every meal exceptional.
Manual & Guides:
User Guide |
Installation Manual |
Spec Sheet |
Technical Details |
|
|---|---|
| Fuel Type | Natural Gas (RSG30-RSG) Liquid Propane (RSG30LP-RSG) |
| Construction | Freestanding |
| Burner Type | Sealed Burners |
| Type of Grate | Continuous |
| Max BTU | 15,000 BTU |
| Amperage | 15A |
| Volts (V) | 120V |
| Frequency (Hz) | 60Hz |
| Control Type | Knob / Touch Screen |
| Panel light | Yes |
| Plug Type | US 3-prong |
| Power Cord Length (in.) | 59" |
Oven Performance |
|
|---|---|
| Oven Capacity (cu. Ft.) | 4.55 cu. ft. |
| Oven Control Features: |
Light On/ Off, Clock & Kitchen Timer, Time Cooking, Delay Start, Self clean, Control Lock Capability, Sabbath Mode C° or F° Programmable |
| Oven Cooking Modes |
Bake, Conv Bake, Conv Roast, Broil, Keep Warm, Fast Preheat |
| Bake Burner | 18,500 BTU |
| Broil Burner | 10,000 BTU |
| Convection | Commercial Convection |
| Oven Lights | Yes |
| Oven Racks (standard) | 1 |
| Oven Racks (telescopic) | 1 |
| Baking Sheet Size | Fits 23” x 16” Baking sheet |
| Self Clean (Y/N) | Yes |
| Sabbath Mode (Y/N) | Yes |
| Air Fry | No |
Cooktop Performance |
|
|---|---|
| Total Number Of Cooktop Burners | 4 |
| (1) Front Left Burner | 15,000 BTU |
| (2) Front Right Burner | 15,000 BTU |
| (3) Rear Left Burner | 12,000 BTU |
| (4) Rear Right Burner | 12,000 BTU |
Oven Dimensions |
|
|---|---|
| Oven Internal Width | 23 3/4'' |
| Oven Internal Depth | 19 1/2'' |
| Oven Internal Height | 18” |
Product Dimensions |
|
|---|---|
| Product Dimensions (WxDxH) | 29 7/8” x 29 3/4” x 40 7/16” |
| Rubber Spacer Depth (Install On Back Panel) | 3/4″ |
| Product Height (From Bottom To Top Of Back Splash) | 40-7/16” |
| Product Height (From Bottom To Top Of Side Panel) | 36″ |
| Product Depth (From Back Panel To Handle) | 29″ |
| Product Depth (From Back Panel To Bullnose) | 27 1/2″ |
| Product Depth (From Back Panel To Control Panel) | 26 3/8″ |
| Product Depth (From Back Panel To Side Panel Front) | 24″ |
| Adjustable Height | 1" |
| Package Dimensions (WxDxH) | 32” x 32” x 47 1/2” |
Weight |
|
|---|---|
| Net weight | 212 lbs |
| Gross weight | 256 lbs |
