Product overview

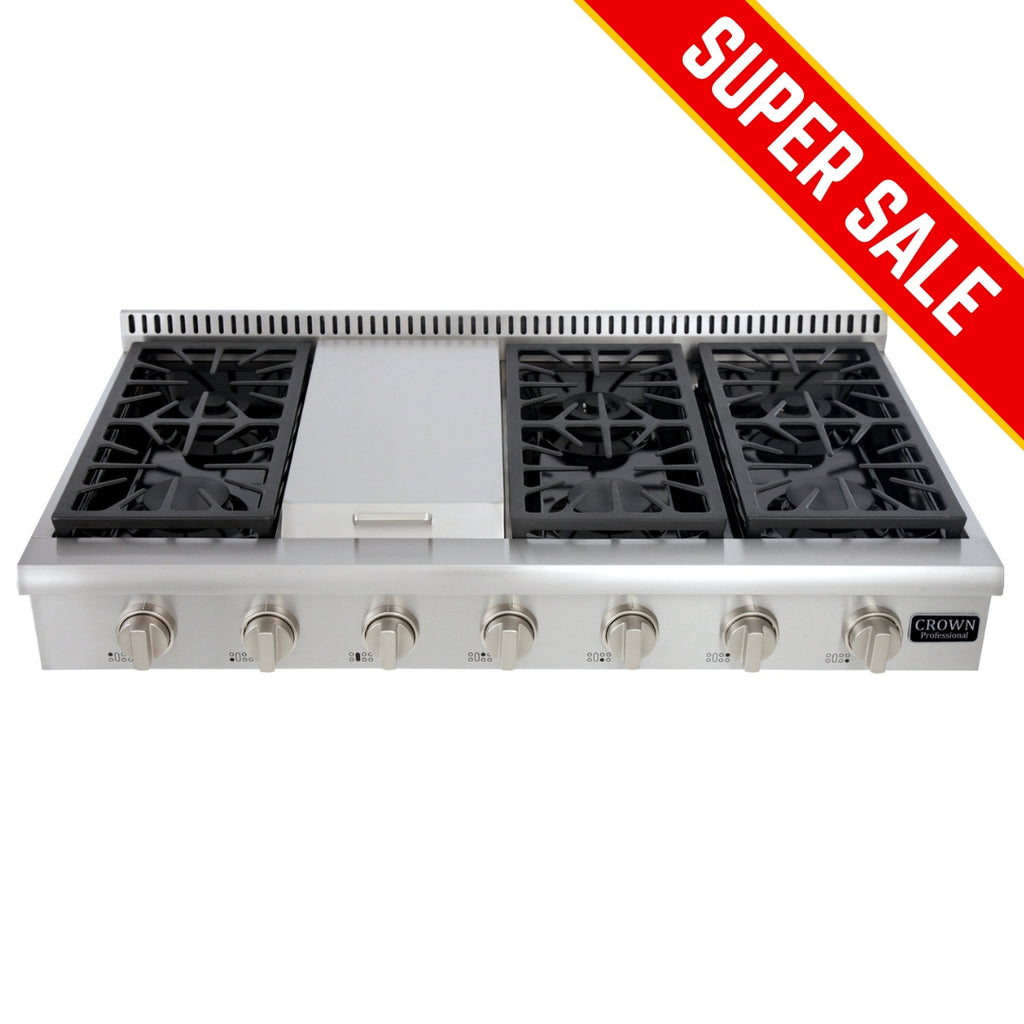

Crown Professional ART4801 48-Inch Gas Rangetop with 114000 BTU.
- Brand
- Crown Professional
- Model
- ART4801
- Width
- 48 inches
Crown ART4801 is a 48-inch gas rangetop with 6 burners.
Key specifications
Check the installation guide for cutout dimensions, clearances and fuel requirements before ordering.
Compatible with THOR Kitchen HRT4806U Kit
ART4801 Gas Range Top Features:
- 3x 18,000 Btu Burners, 3x 15,000 Btu Dual Burners With Simmer, 1x 18,500 Btu Stainless Steel Griddle
- Black Porcelain Drip Pan
- Heavy Duty Cast-Iron Cooking Grates
- LED Lights Illuminate Knob when burner on
- Electronic Ignition With Auto Re-Ignition
- High Quality Control Knobs
About the ART4801 Gas Range Top:
48" Crown Professional style gas range top with 6 sealed burners. This gas range top features quality control knobs, black porcelain drip pan and heavy duty flat continuous cast-iron cooking grates for easy movement of large cookware.
Technical Details:
| Fuel Type |
NG, Convertible Liquid Propane |
| Electrical Requirements |
120V |
| Circuit Breaker (A) |
15 or 20 A |
| Frequency (Hz) |
60 Hz |
Burner Performance:
| Total Number of Range Top Burners |
6 Burners |
| 3 Front Burners (Single) |
18,000 BTU |
| 3 Rear Burners (Dual burner with simmer function) |
15,000 BTU (650 BTU for Simmer) |
| Stainless Steel Griddle |
|
Dimension & Weight:
| Product Dimension (W x D x H) (in) |
47 13/16” x 25 3/4” x 7 3/8” |
| Required Cutout Size (W x D x H) (in) |
48” x 24” x 7 3/8”-7 7/8” |
| Product Net Weight |
70 kg |
| Adjustable Range Legs |
1/2” |
