LRG3601U Gas Range Features:
-

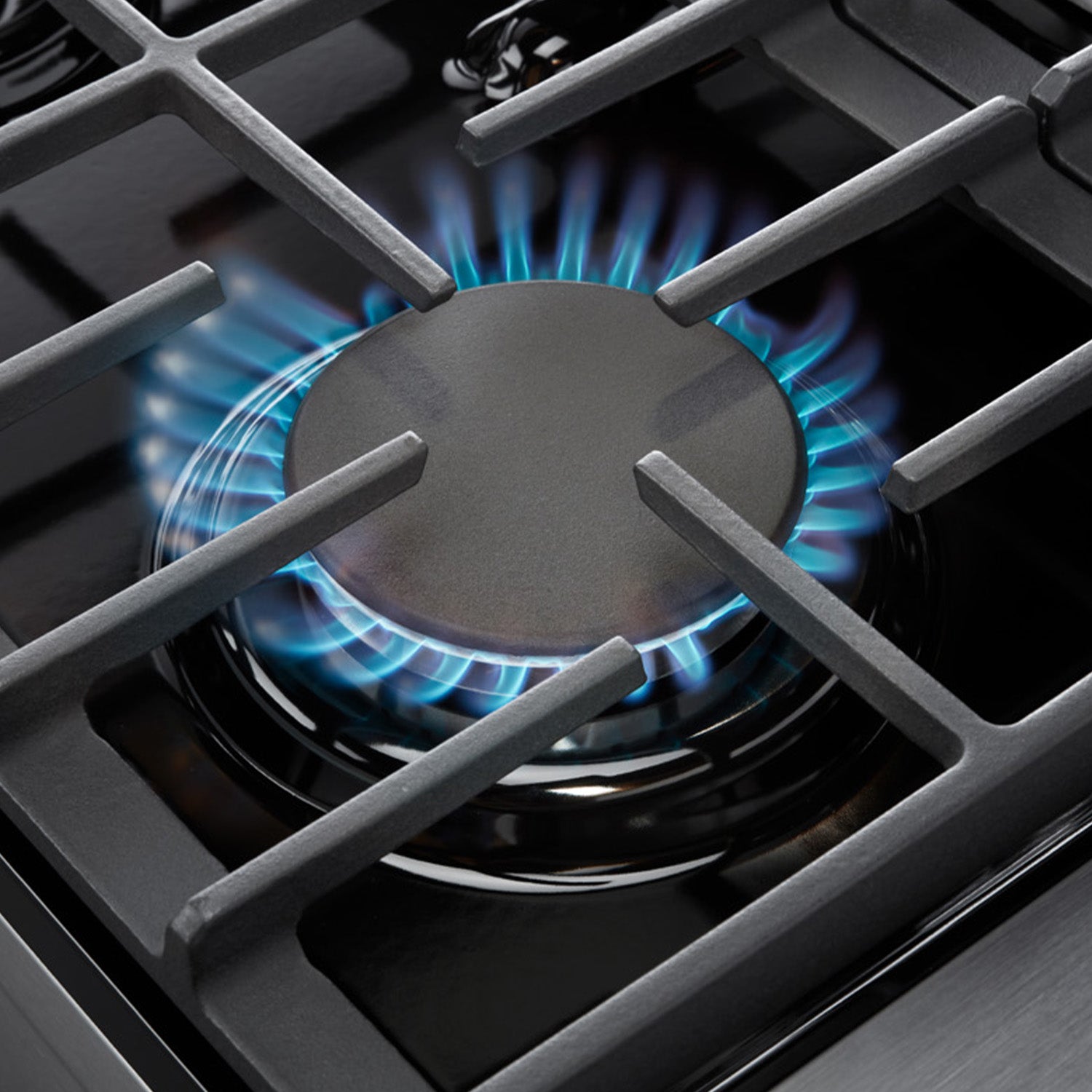

High-Powered BTU Burners - With a high-powered 18,000 BTU burner, this gas range provides fast, intense heat for creating large family meals and restaurant-quality dishes
-

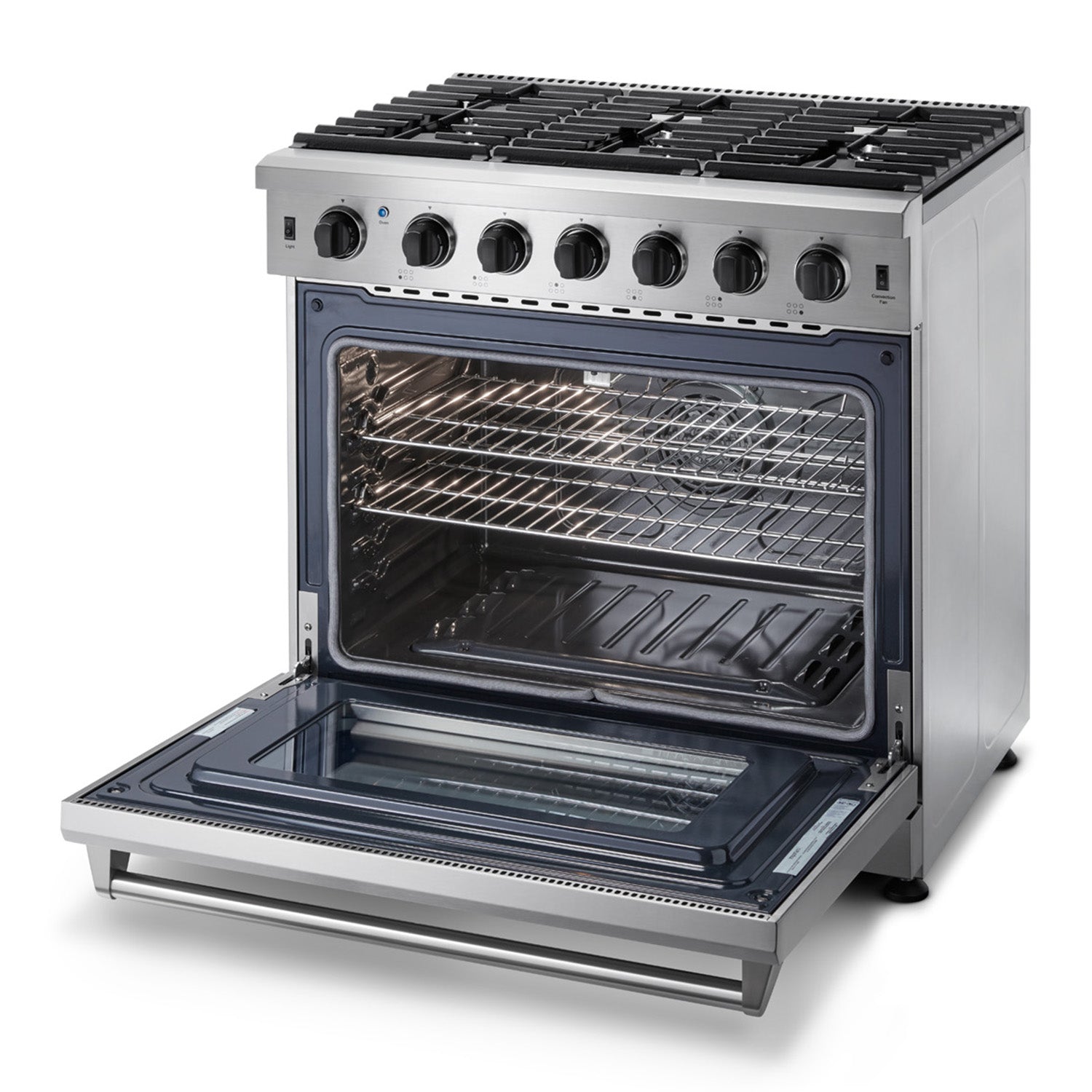

Large Oven Capacity - 6.0 cu. ft. oven capacity can accommodate multiple dishes for enhanced cooking
-
Storage Space - Storage drawer provides additional storage space for cooking trays and other kitchen utensils
-
Convection Fan - Commercial convection fan provides controlled heat distribution for fast and efficient cooking
-

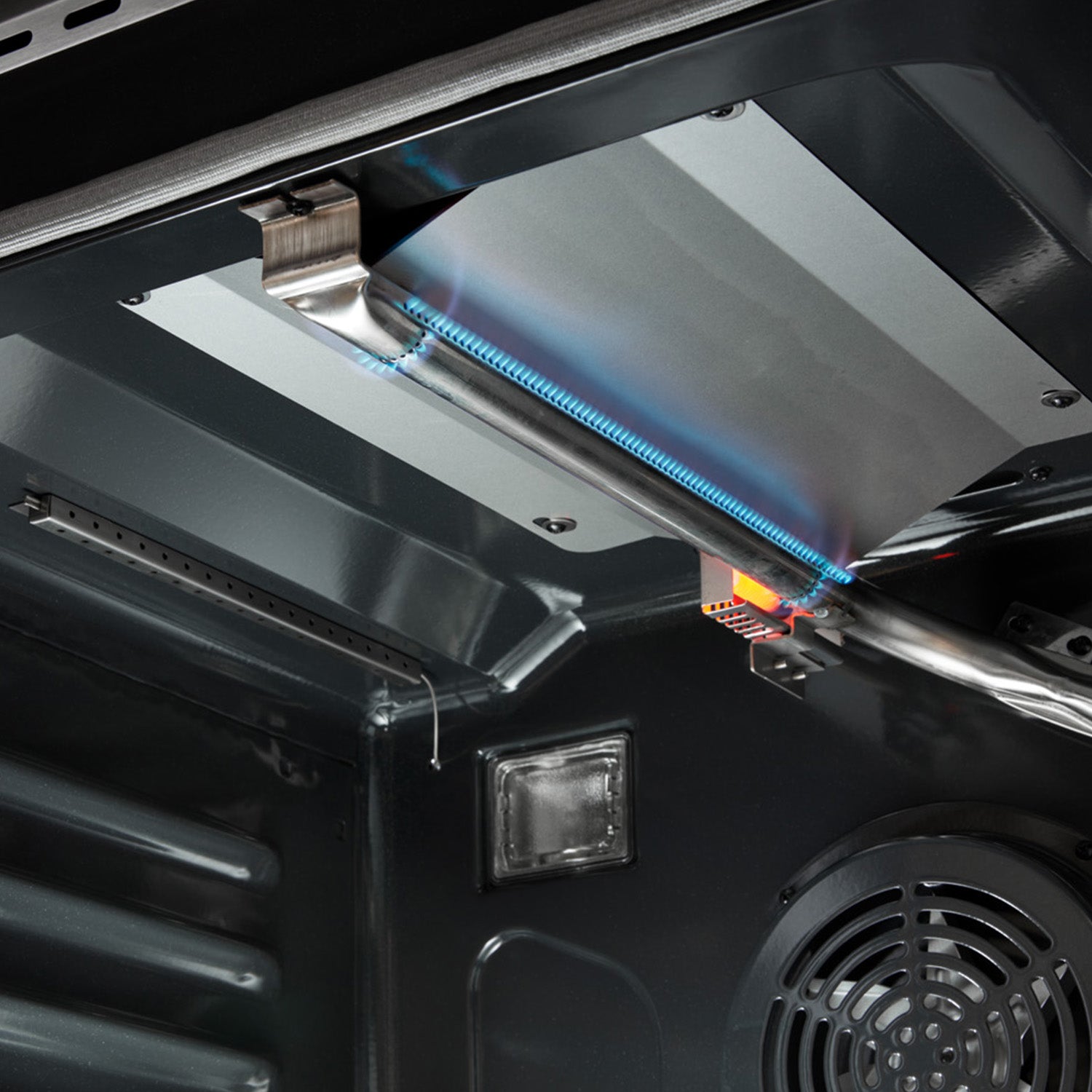

Even Heat Broiler - Reflective gas tube broiler distributes heat evenly to sear your food and seal in the juices
-
Continuous Cast-Iron Grates - Heavy-duty continuous cast-iron cooking grates that can handle any size cookware
-

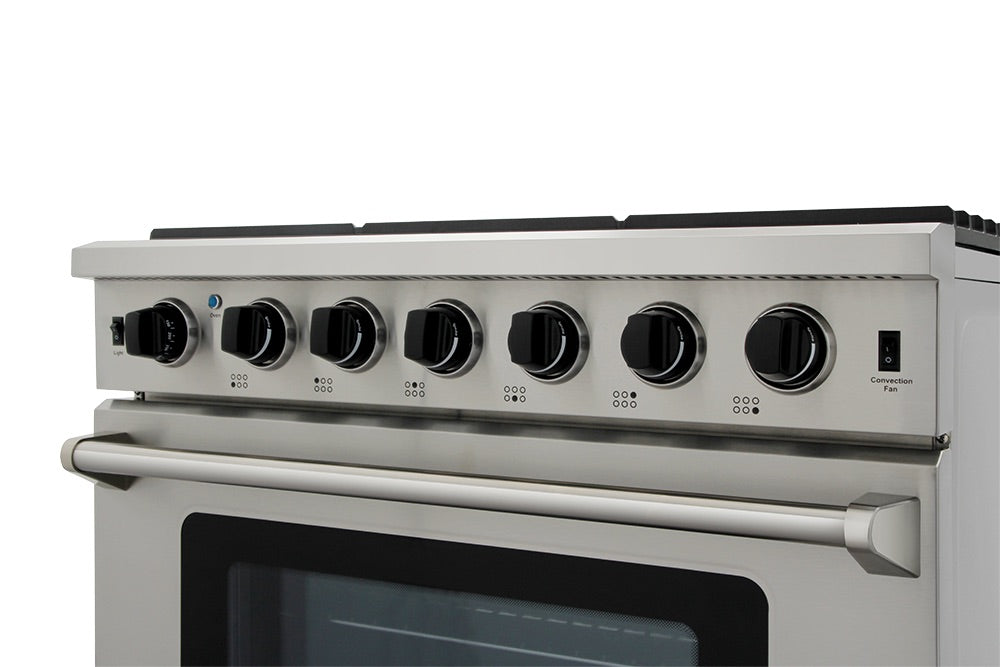

Pro-style Knobs - Black burner control knobs add style to the bold gas range design
-
Porcelain Spill Tray - Single-piece black porcelain spill tray catches the mess and makes the gas range easy-to-clean
-
Porcelain Interior - The gray porcelain oven interior adds a stylish touch o the gas range and is easy to clean
About the LRG3601U Gas Range:

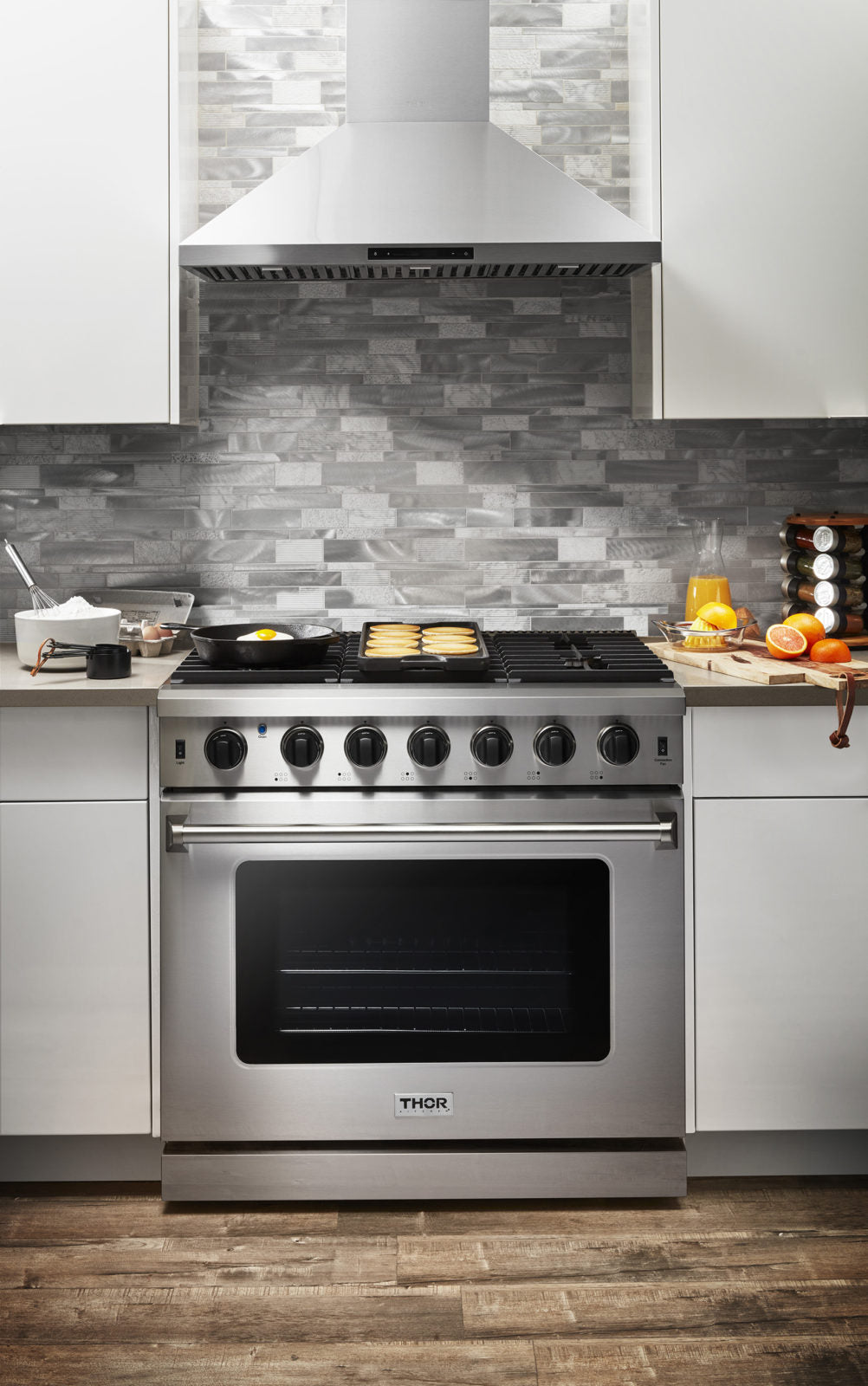

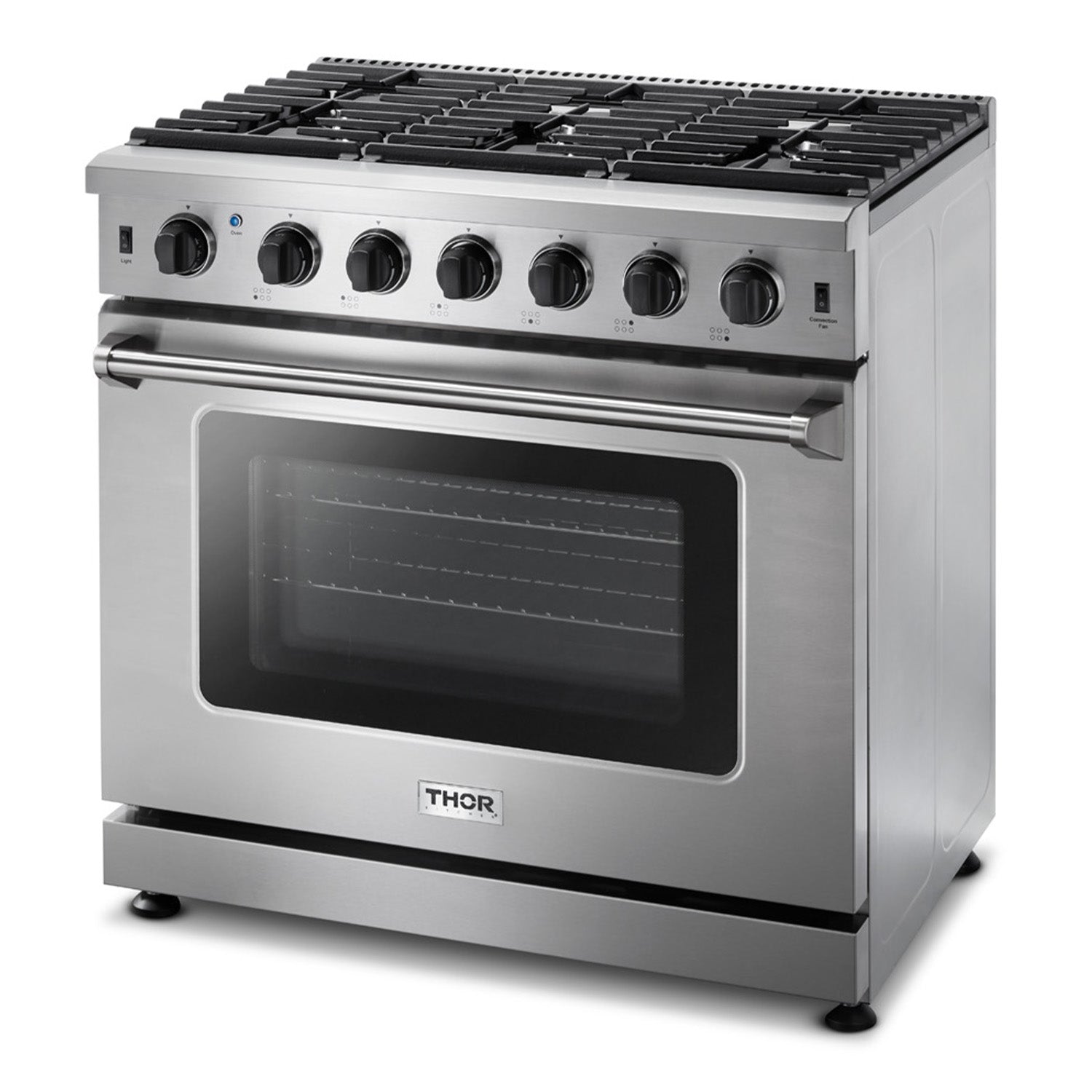

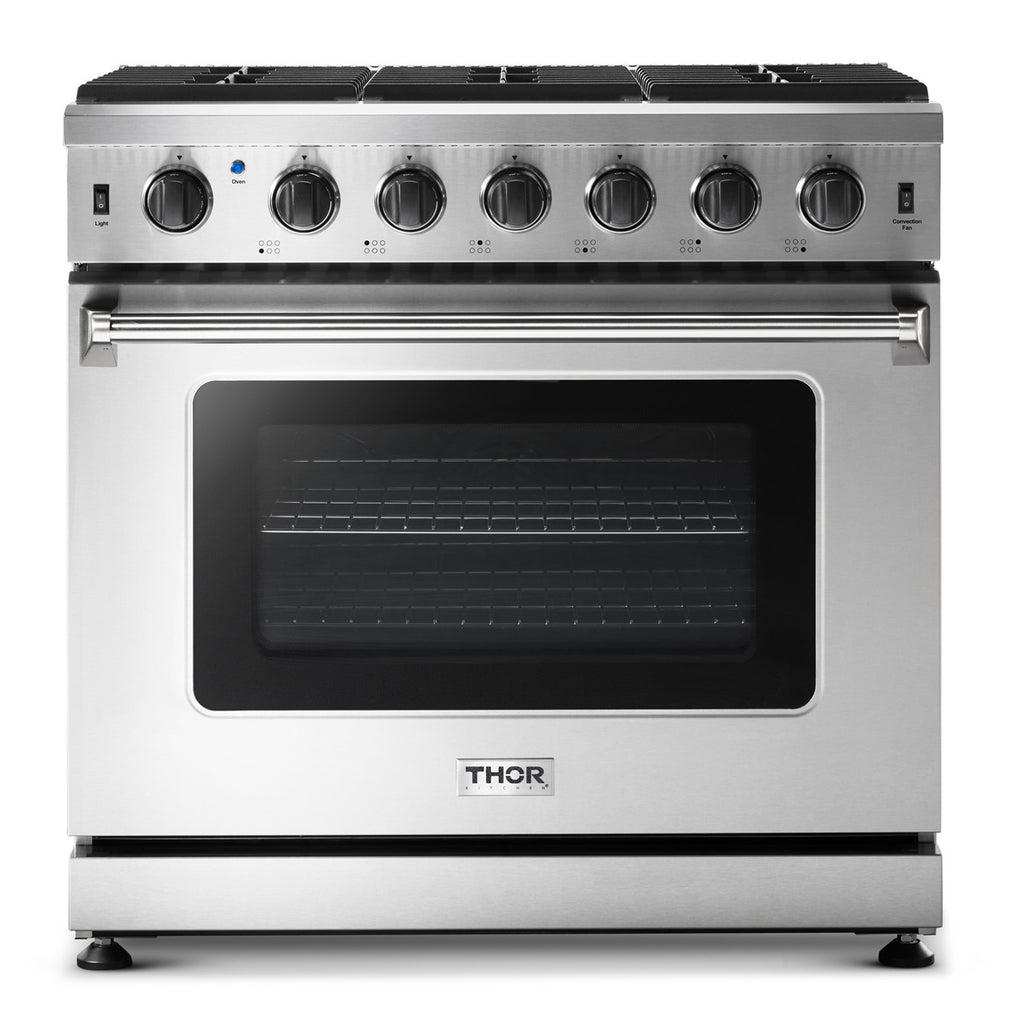

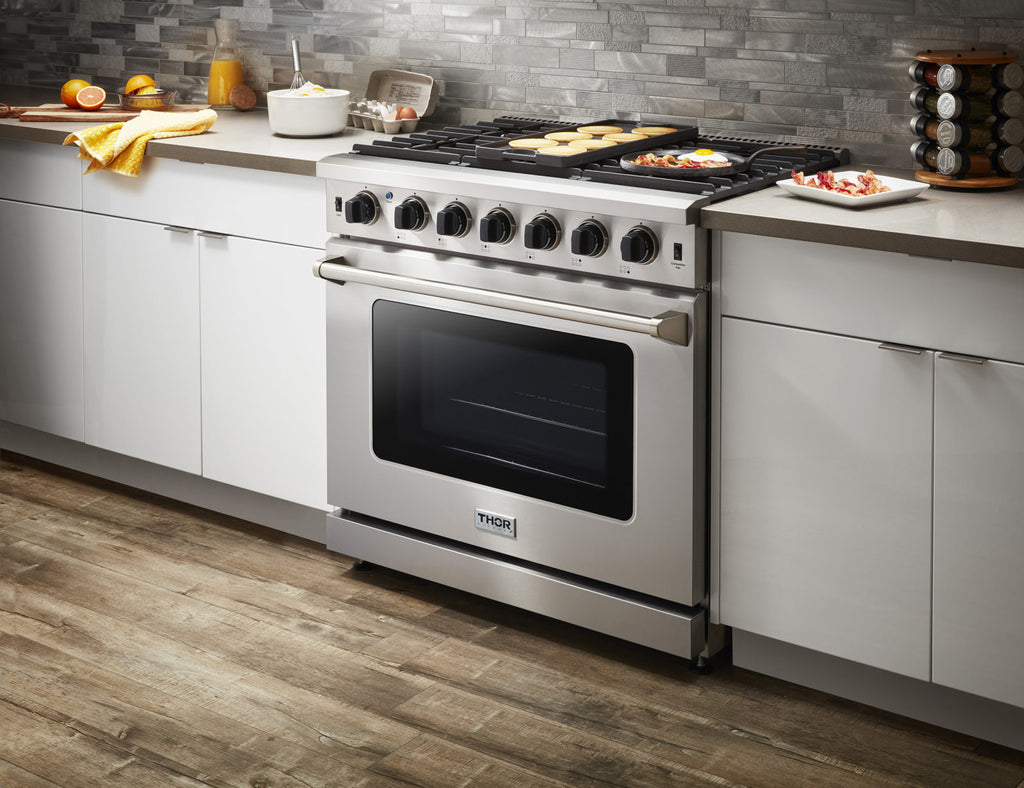

THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. The Thor Kitchen 36 Inch Gas Range is a stainless steel machine designed with professional features and functionality. With powerful burners, continuous grates and a commercial convection fan, this gas range takes everything from prime rib to snickerdoodles to the next level.
Technical Details:
| Fuel Type |
Natural Gas / LP Convertible |
| Electrical Requirements |
120V |
| Circuit Breaker (A) |
15 or 20A |
| Frequency (Hz) |
60 Hz |
Burner Performance:
| Front Left (Single) |
18,000 BTU |
| Front Middle (Single) |
12,000 BTU |
| Front Right (Single) |
18,000 BTU |
| Rear Left (Single) |
9,000 BTU |
| Rear Middle (Single) |
12,000 BTU |
| Rear Right (Single) |
9,000 BTU |
| Tube Broil burner |
10,000 BTU |
| Bake Burner (30” Oven) |
18,500 BTU |
Product Dimensions:
| Product Width |
36” |
| Product height (from bottom to top of back splash) |
36 5/16”- 37 5/16” |
| Product height (from bottom to top of side panel) |
35 5/8”-36 5/8” |
| Product depth (from back panel to bullnose) |
28 5/16” |
| Product depth (from back panel to control board) |
27 1/16” |
| Product depth (from back panel to side panel front) |
24 3/4” |
| Depth of control panel (minimum) |
2 1/4” |
| Depth of control panel (bullnose) |
3 9/16” |
| Adjustable Legs |
Not to Exceed 1” |
Required Cutout Size:
- 36 1/8” x 24 3/4” x 35 5/8” (+1”)
